My Build 2006 WRX STI

Postby Mark95Mark » Wed Dec 09, 2015 12:26 pm

Hello All ..

Just thought I would share with you my build / Engine Modifications on my 2006 WRX STI ..
Feel free to give an opinion on this ..
Firstly the reasons for this re-build was due to 2 Pistons having cracked Ring Land Problems ..

The bore's only required Honing (I was Lucky) The motor had only done just over 50,000 km's ..

Pistons - Forged CP Pistons ( Compression Ratio 9:0 - 1 ) then with a quarter of compression added (Shaving the Heads) it should be around 9:25 - 1 ..
Connecting Rods - Manly H-Beam ....
Heads / Ported
1000 cc Injectors
ACL Bearings
ARP Head studs ( Not the aged ones )
Under Driven Pulley Kit
TGV Deletion
After Market Exhaust System (CATLESS - This is about to change)
GTX3071R Turbo
Front Mount Intercooler
Silicon Air Intake
EcuTek (Stage 2)
3 port boost solenoid (Grimspeed)

Exedy heavy Duty Clutch ..

All motor assembly work was done by Myself and a mate and tuned at S&J Automotive

Runs 2 fuel Maps ( E85 / 98 RON) Running E85 and Conservative tune "285WKW"
CLEAN IS FAST ....

User avatar
KuRT12
Impreza 22B Driver
Posts: 1642
Joined: Fri Feb 22, 2013 4:14 pm
Location: Eastern Suburbs, Melbourne

Re: My Build 2006 WRX STI

Postby KuRT12 » Wed Dec 09, 2015 1:16 pm

Sounds like a great build mate, you from SA?

Any pictures :)?
MY '12 SWP WRX STi Spec. R Sedan
Sandown 1:20.48 - Winton 1:35.19 - Wakefield 1:06.84 - Phillip Island 1:44.96 - Broadford 1:03.80 - SMSP Gardner (AD08) : 1:48.05

Mark95Mark
Learner Driver
Posts: 29
Joined: Mon Nov 30, 2015 11:19 am
Location: (Adelaide) South Australia

Re: My Build 2006 WRX STI

Postby Mark95Mark » Thu Dec 10, 2015 11:49 am

Hey Bud .. Yeah I'm in S.A.
Will upload some photo's tomorrow ..
I have heaps as I was taking photo's as I was building the motor ..
CLEAN IS FAST ....

User avatar
Kristian
Social Committee Kristian
Social Committee Kristian
Posts: 510
Joined: Fri Sep 03, 2010 10:21 am
Location: Melbourne

Re: My Build 2006 WRX STI

Postby Kristian » Thu Dec 10, 2015 11:54 am

Sounds like a nice build... keen to see some photos
------------------ GOT IT REX TUNED 2011 STI SEDAN ------------------

User avatar
KuRT12
Impreza 22B Driver
Posts: 1642
Joined: Fri Feb 22, 2013 4:14 pm
Location: Eastern Suburbs, Melbourne

Re: My Build 2006 WRX STI

Postby KuRT12 » Thu Dec 10, 2015 12:26 pm

Make sure you make it over for subinats next year :D!
MY '12 SWP WRX STi Spec. R Sedan
Sandown 1:20.48 - Winton 1:35.19 - Wakefield 1:06.84 - Phillip Island 1:44.96 - Broadford 1:03.80 - SMSP Gardner (AD08) : 1:48.05

Alpha Dog
Blue MY06 STi Driver
Blue MY06 STi Driver
Posts: 344
Joined: Sun Jul 03, 2005 12:49 am
Location: twisties

Re: My Build 2006 WRX STI

Postby Alpha Dog » Thu Dec 10, 2015 7:30 pm

Owner of the same - what caused the 2 Pistons to have cracked Ring Land Problems? Thanks.
Photo credit: Joel Strickland Photographics - thanks Joel!

Mark95Mark
Learner Driver
Posts: 29
Joined: Mon Nov 30, 2015 11:19 am
Location: (Adelaide) South Australia

Re: My Build 2006 WRX STI

Postby Mark95Mark » Mon Dec 14, 2015 1:27 pm

Hey Mate .. Really not to sure .. If you hear and believe all the stories it would be due to the standard pistons being the weak point of the motor .. Especially when you start upgrading the ECU and Turbo etc .. It happens ..
CLEAN IS FAST ....

Mark95Mark
Learner Driver
Posts: 29
Joined: Mon Nov 30, 2015 11:19 am
Location: (Adelaide) South Australia

Re: My Build 2006 WRX STI

Postby Mark95Mark » Mon Dec 14, 2015 4:28 pm

Hey Guys .. Is it me or is it difficult to upload some photo's to this site .. ??
CLEAN IS FAST ....

Alpha Dog
Blue MY06 STi Driver
Blue MY06 STi Driver
Posts: 344
Joined: Sun Jul 03, 2005 12:49 am
Location: twisties

Re: My Build 2006 WRX STI

Postby Alpha Dog » Mon Dec 14, 2015 5:28 pm

Mark95Mark wrote:Hey Mate .. Really not to sure .. If you hear and believe all the stories it would be due to the standard pistons being the weak point of the motor .. Especially when you start upgrading the ECU and Turbo etc .. It happens ..

Yes that seems to be widely accepted. What I was getting at is: what mods and power was your engine running when it failed?

FWIW. I've been advised to stay below 190kW atw with stock internals and 98octane. Esp if dong any track days.
Photo credit: Joel Strickland Photographics - thanks Joel!

User avatar
Yeldz
Impreza WRX Driver
Posts: 693
Joined: Sat Sep 21, 2013 10:52 am
Location: Bayswater

Re: My Build 2006 WRX STI

Postby Yeldz » Mon Dec 14, 2015 7:41 pm

Mark95Mark wrote:Hey Guys .. Is it me or is it difficult to upload some photo's to this site .. ??

G'day mate,
Create a free photo bucket account, iirc you get 2gb free storage.
Drag n drop from your file explorer to the upload dialogue.
Click share within your gallery on the photo you want to post & click the IMG text box on the right hand side.
(no need to add the html tags, it is already done for you)
Control V & all should be good ((hit preview to check content) I do this as standard practice these days as I almost inadvertently posted a wrong pic on here which was intended for a certain very limited audience only))

As per posts above, sounds like an awesome build mate & keen for pics!
All41N14All

Mark95Mark
Learner Driver
Posts: 29
Joined: Mon Nov 30, 2015 11:19 am
Location: (Adelaide) South Australia

Re: My Build 2006 WRX STI

Postby Mark95Mark » Wed Dec 16, 2015 12:01 pm

Hey Alpha Dog,

The upgrades to the Motor when the Pistons developed the cracked Ring Lands where as below ..
Upgraded Exhauset System ( With a Cat Converter )
Larger TMIC Hyperflow
EcuTek (Stage 2)
Cold Air Intake
Increased Fuel Pump Size

As I don't have the Dyno sheet on me .. and this was done before I bought the car .. On memory it had around 200 wkw Hmm maybe a bit less .. thats a guess mate .. 98Ron
CLEAN IS FAST ....

Alpha Dog
Blue MY06 STi Driver
Blue MY06 STi Driver
Posts: 344
Joined: Sun Jul 03, 2005 12:49 am
Location: twisties

Re: My Build 2006 WRX STI

Postby Alpha Dog » Wed Dec 16, 2015 4:40 pm

Thanks Mark. Sounds like the advice I have was right, although it depends on the tune.

I assume the symptoms of the cracked ring lands were high oil use, blue smoke, low compression, knock... then bang?

Obviously I'm curious re any external signs... I have similar mods, 190kW and a plan to go harder with Motorsport. Thanks.
Photo credit: Joel Strickland Photographics - thanks Joel!

Mark95Mark
Learner Driver
Posts: 29
Joined: Mon Nov 30, 2015 11:19 am
Location: (Adelaide) South Australia

Re: My Build 2006 WRX STI

Postby Mark95Mark » Thu Dec 17, 2015 3:39 pm

Hey Mate,
Even though I never wanted this to happen as it was going to cost me money I think I was going to do these sorts of Mod's in the future ..
I was extremely lucky or lets say very anal when it comes to my car so I dont miss to much .. The oil usage wasnt all that bad .. But it did blow a little bit of smoke .. nothing to great to cause me to much concern .. But what lead me to this problem is one day when I was turning the car over to start it I noticed it had a down cylinder .. As you know these cars have very distinctive compression strokes and I just happened to notice it missed one .. Then did the compression test / Leak down and yep had a cylinder down .. When I pulled the motor down I was lucky that the cracked ring lands stayed in between the piston comp rings and didnt dislodge .. So all that was need was a hone to the bores and I was still able to put the standard Diameter pistons back in ..
So a little info for you .. Be very wise in what turbo you choose and whether you put a FMIC on the car ..
Im still unsure with my Turbo choice and FMIC choice or even whether it needed it ( The FMIC that is ) .. And my initial plan was to rotate the Turbo but I got slack and didnt do it .. That was a mistake on my behalf and will be doing that mod in the new year .. Hoping to bring it just over 300 wkw ..
CLEAN IS FAST ....

Mark95Mark
Learner Driver
Posts: 29
Joined: Mon Nov 30, 2015 11:19 am
Location: (Adelaide) South Australia

Re: My Build 2006 WRX STI

Postby Mark95Mark » Tue Jan 12, 2016 10:40 am

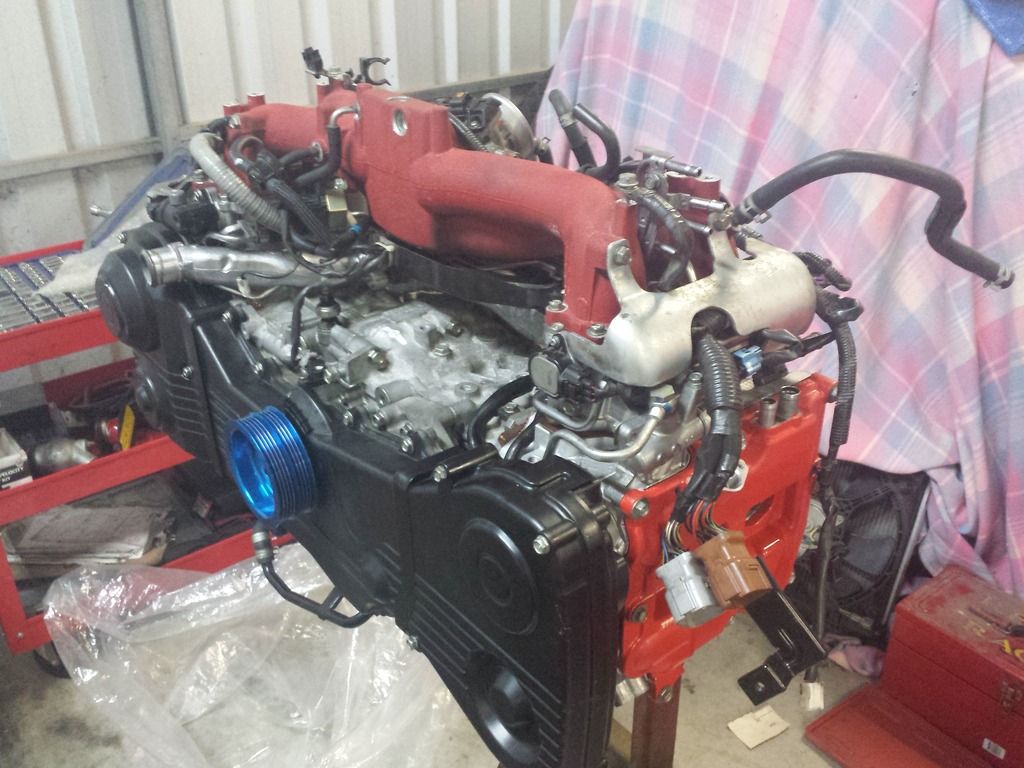

[/img][/img][/img]<a href="http://s1044.photobucket.com/user/mark95mark/media/20140428_082629_zpss34awa59.jpg.html" target="_blank"><img src="http://i1044.photobucket.com/albums/b443/mark95mark/20140428_082629_zpss34awa59.jpg" border="0" alt=" photo 20140428_082629_zpss34awa59.jpg"/></a>

Hey Yeldz .. Did this Photo work .. ??
CLEAN IS FAST ....

User avatar
ABSTI
Impreza RS Driver
Posts: 165
Joined: Wed Jun 25, 2014 7:12 pm

Re: My Build 2006 WRX STI

Postby ABSTI » Sun Feb 07, 2016 5:51 pm

Neat car! Post up some pics n graphs!

User avatar
Yeldz
Impreza WRX Driver
Posts: 693
Joined: Sat Sep 21, 2013 10:52 am
Location: Bayswater

Re: My Build 2006 WRX STI

Postby Yeldz » Mon Feb 08, 2016 5:43 pm

Mark95Mark wrote:[/img][/img][/img]<a href="http://s1044.photobucket.com/user/mark95mark/media/20140428_082629_zpss34awa59.jpg.html" target="_blank"><img src="http://i1044.photobucket.com/albums/b443/mark95mark/20140428_082629_zpss34awa59.jpg" border="0" alt=" photo 20140428_082629_zpss34awa59.jpg"/></a>

Hey Yeldz .. Did this Photo work .. ??

Ummmm no mate.

But it does now.

All41N14All

Mark95Mark
Learner Driver
Posts: 29
Joined: Mon Nov 30, 2015 11:19 am
Location: (Adelaide) South Australia

Re: My Build 2006 WRX STI

Postby Mark95Mark » Tue Feb 09, 2016 1:20 pm

Hey Bud ..
How did you manage to do that .. ??
CLEAN IS FAST ....

User avatar
Yeldz
Impreza WRX Driver
Posts: 693
Joined: Sat Sep 21, 2013 10:52 am
Location: Bayswater

Re: My Build 2006 WRX STI

Postby Yeldz » Tue Feb 09, 2016 6:51 pm

Mark95Mark wrote:Hey Bud ..
How did you manage to do that .. ??


I edited below:
[/img][/img][/img]<a href="http://s1044.photobucket.com/user/mark95mark/media/20140428_082629_zpss34awa59.jpg.html" target="_blank"><img src="http://i1044.photobucket.com/albums/b443/mark95mark/20140428_082629_zpss34awa59.jpg" border="0" alt=" photo 20140428_082629_zpss34awa59.jpg"/></a>

If you quote my post with the pic showing you'll see what it should look like in the preview.
All41N14All

User avatar
Delivan
Impreza 22B Driver
Posts: 1817
Joined: Tue Apr 29, 2008 12:18 am
Location: Sitting in the kitchen in Brisbane

Re: My Build 2006 WRX STI

Postby Delivan » Tue Feb 09, 2016 7:53 pm

Nice.. I like the painted rocker covers.. Little things like that are always worth while. When you come to sell it, that is the sort of thing that will get you a good price..
'09 Impreza Charcoal Hatch Auto
'03 WRX Pearl Red Bug Sedan
'02 WRX Silver Bug Wagon
'98 WRX Blue Club Spec Evo 2 with 2.5 lt
'99 WRX White Sti Version 6 with 2.5 lt
'98 Mitsubishi EVO 5 (kept in the basement)

Mark95Mark
Learner Driver
Posts: 29
Joined: Mon Nov 30, 2015 11:19 am
Location: (Adelaide) South Australia

Re: My Build 2006 WRX STI

Postby Mark95Mark » Mon Dec 05, 2016 10:31 am

Hello All,

If anyone was interested .. I just completed some more mod's to my car and had it tuned Friday just gone ..
I added a cold air intake and added a 4" high flow Cat Converter .. Tuned on E85 fuel and managed 301 wkw ( Thanks to Sean @ S&J Auto )
Also for a test I painted my wheels black using Plasti Dip .. with some very surprising results ..
When I work out how to upload picture's I'll do it ..

Regards,

Mark
CLEAN IS FAST ....
